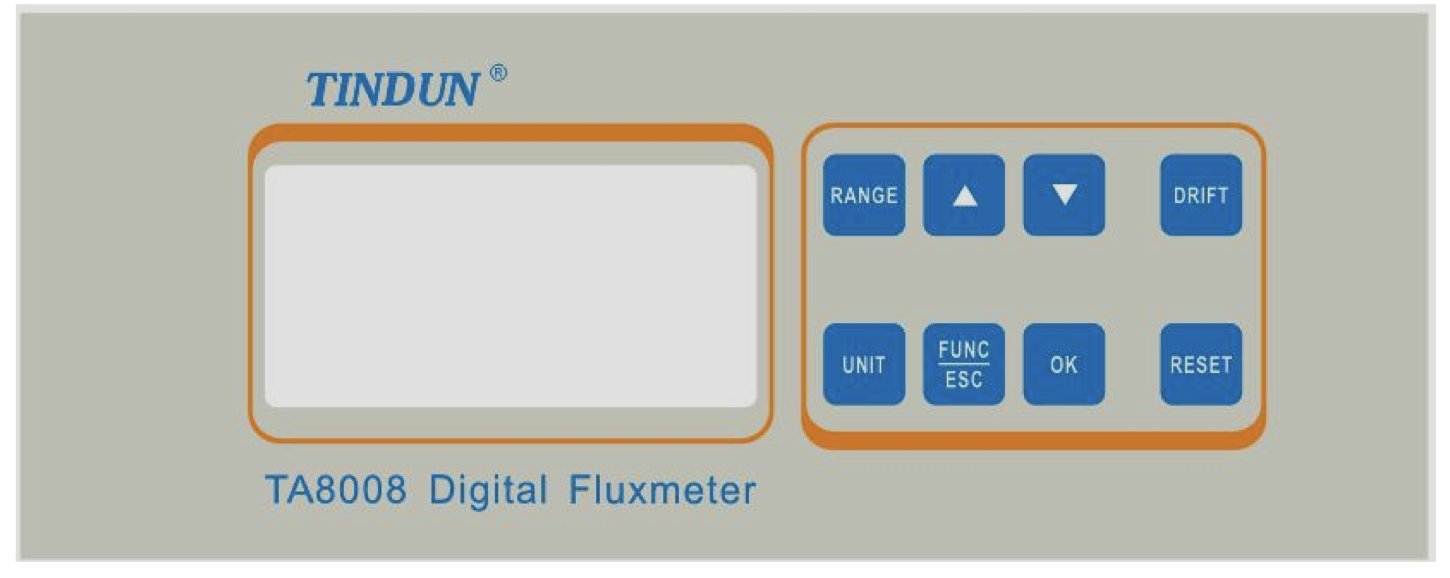

TA8008 磁通計簡易操作說明 TA8008 Digital Fluxmeter Simple Operation Instruction
1、 將電源線連接到儀表后面板電源插座;
Connect the power cord to the rear panel power socket of the instrument;
2、 將線圈通過紅色和黑色信號線至后面板的 coil 輸入插座;
Use the coil through the red and black signal line to the rear panel of the coil input socket。
3、 開機。屏幕顯示數據。長按 3 秒 Drift 按鈕進行自動漂移調節,調節時間大概 45 秒;
Boot. The screen displays data. Long press the Drift button for 1 second to automatically drift adjust. The adjustment time is about 45 seconds.
4、 漂移調節完成后屏幕回到待機界面,顯示 0.000 mWb。此時說明儀表已經調試完成可以進行測試使用。 After the drift adjustment is completed, the screen returns to the standby interface and displays 0.000 mWb. At this point, it indicates that the instrument h can be used for testing.
5、 通過 RANGE 按鍵選擇量程。根據測試數據選擇合適量程。一般建議客戶選擇 20mWb 檔,此時測試靈敏度 在 0.001mWb。
Select the Range by “KEY RANGE”. Select the appropriate range according to the LCD screen. It is easy to use the 20mWb for the first time ,and the sensitivity is 0.001mWb(1uWb).
6、 將測試樣品放入線圈穩定后,按下面板 Reset 按鈕,聽到儀器內部兩聲繼電器聲響后將樣品取出,此時屏幕 顯示數據即樣品的磁通量數據。
After the test sample is put into the coil to be stabilized, press the RESET button on the panel and take out the sample after hearing the sound of two relays in the instrument. At this time, the screen displays the data, namely the magnetic flux data of the sample.
/*
? 默認出廠 1 號線圈為計量院送檢線圈參數,建議用戶不要更改;
? 默認出廠 2 號線圈為隨機線圈參數,用戶常規測試使用,建議用戶不要更改。 ? 3-5 號線圈可由用戶自行設置不同線圈參數。
磁矩測試: Magnet Moment Test
如果隨機配備有亥姆霍茲測試線圈,則儀器可用于磁矩測試。
磁矩測試狀態下,通過儀器面板 UNIT 按鍵選擇至單位顯示為 uWb*cm,此時屏幕顯示數據即為產品的磁矩值。 */
修正數據(僅針對產品的比對測試時候使用): ************提示********
修改前請記錄當前數據。
*************************
假設當前測試數據為 2,需要將數據修改到 1 以便用于比對
